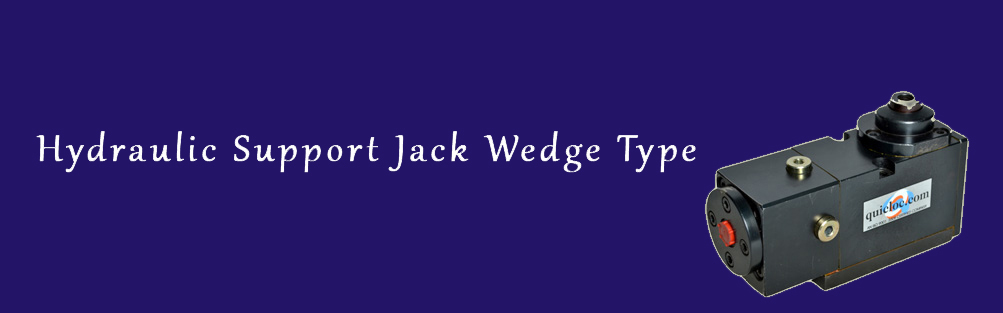

HYDRAULIC SUPPORT JACK WEDGE TYPE :

  1. Plunger retracts during reset and permits sliding of job and easy loading and unloading of job.
  2. Plunger does not exert force on the job, while supporting job.
  3. Gives positive work support.
  4. Ideal for achieving good flatness, surface finish &better control ofCP&CPK.
DESCRIPTION:

This is hydraulically operated wedge locking type Support Jack, which gives positive support to the plunger and locking on actuation.

This can bemounted directly in the fixtures. It is possible to get initial surface contact of work piece within variations of +/- 1.6mm. These job variations are taken care of during positive supporting and locking.

FEATURES:
  • Min./ Max. Operating Pressure 10/100 bar.
  • Positive Locking.
  • Tapped hole M10 x 20 deep for mounting tip.
  • Max. supporting load 20 kN.
  • Special support jacks can be done to suit Customer’s requirement.
NOTE :
  • Refer general design notes before selection & use.
  • Ordering specification for seal kit. Add prefix "SK" to the model Number
Do not apply eccentric Load. Clamping force must be directly over the support point.

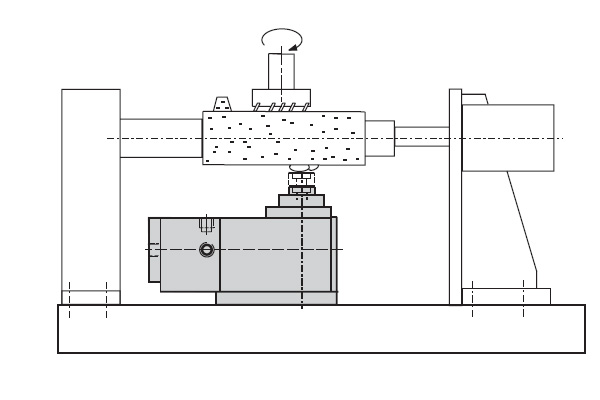

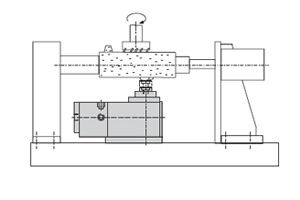

APPLICATION CHART : SPECIFICATION CHART :
  Model No. J21301
  Stroke 12
  Load capacity kN 20
  Pressure Point XP2102
  Spring Force 4N

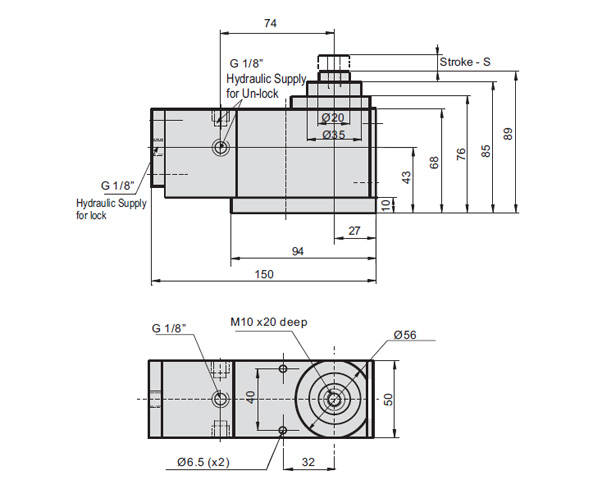

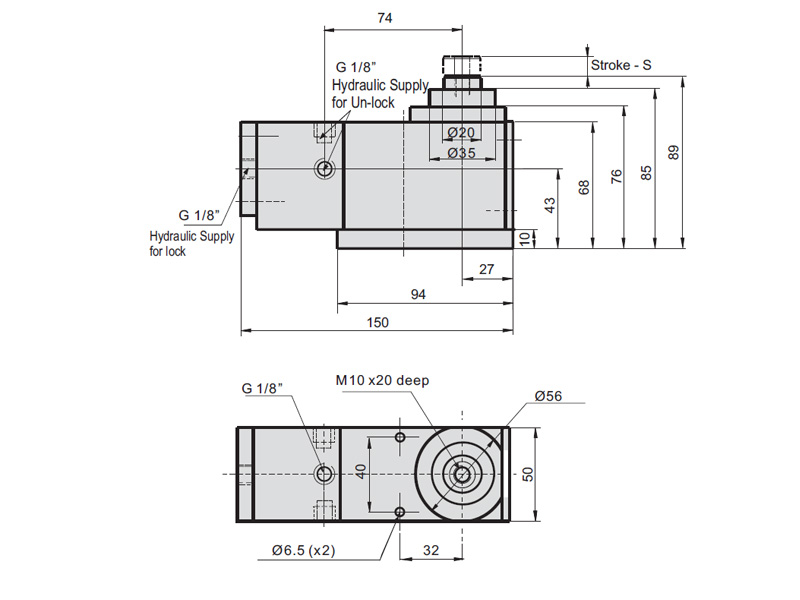

All dimensions in mm.
Specifications subject to improvements.

Click here to download a pdf:

J21301
