- Very compact in design.
- Fits in tightest areas of fixtures.
- Easy assembly and disassembly.
- Ensures compact fixture design.
- Can be used for clamping, locating, ejecting and
butting.
- Can be used for push and pull application.
DESCRIPTION:

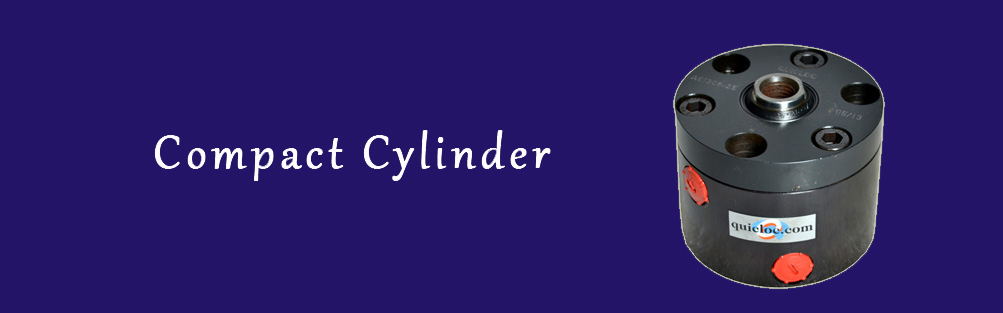

These cylinders are used for work holding fixtures and are
very Compact enabling compact design of the fixture.
FEATURES:
- Has internal threaded piston rod.
- Has compact height.
- Max. Operating Pressure 150 bar.
NOTE :
- Refer General Design notes before selection & use.
- Ordering specification for seal kit. Add prefix "SK" to
the model Number.
|
| Keep back pressure in
the system and in the
line to minimum for
smooth working of
cylinder.
All dimensions in mm. |

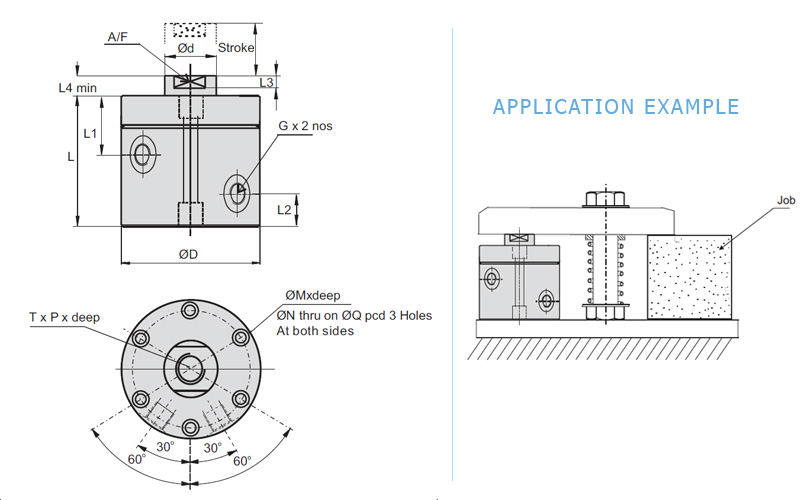

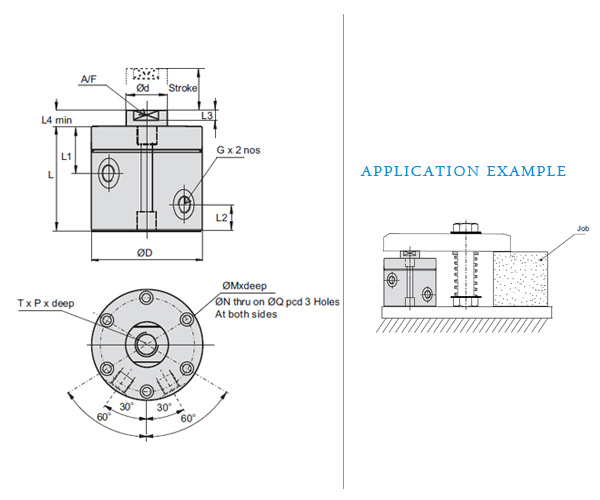

SPECIFICATION CHART
| Push Force kN |
4.7 kN |
12 kN |
19 kN |
29 kN |
| Pull Force kN |
3 kN |
9 kN |
14 kN |
22 kN |
| Bore Ø |
20 |
32 |
40 |
50 |
| T x P x deep |
M6 x 10 deep |
M10x18 deep |
M12x20 deep |
M16x25 deep |
| L4 |
5 |
5 |
6 |
6 |
| d |
12 |
16 |
20 |
25 |
| D |
45 |
65 |
76 |
95 |
| G |
1/8* |
1/8* |
1/4* |
1/4* |
| A / F |
10 |
14 |
17 |
22 |
| L1 |
17 |
20 |
24 |
28 |
| L2 |
9 |
9 |
12 |
12 |
| L3 |
3.5 |
3.5 |
4 |
4 |
| ØN |
4.5 |
6.6 |
9 |
11 |
| Ø M x deep |
8 x 4.4 |
11 |
14 x8.6 |
17.5x10.8 |
| Ø Q PCD |
35 |
50 |
60 |
75 |
| Ø M x deep |
8 x 4.4 |
11 |
14 x8.6 |
17.5x10.8 |
| Model No. |
A61301 |
A61303 |
A61305 |
A61307 |
| Stroke + 1 |
10 |
10 |
10 |
10 |
| L |
38 |
44 |
52 |
58 |
| Oil Vol push cc |
3 cc |
8 cc |
13 cc |
20 cc |
| Oil Vol pull cc |
2 cc |
6 cc |
10 cc |
15 cc |
| Model No. |
A61302 |
A61304 |
A61306 |
A61308 |
| Stroke ± 1 |
25 |
25 |
25 |
25 |
| L |
53 |
59 |
67 |
73 |
| Oil Vol push cc |
8 cc |
20 cc |
31 cc |
49 cc |
| Oil Vol pull cc |
5 cc |
15 cc |
24 cc |
37 cc |
|
Specifications subject to improvements.
