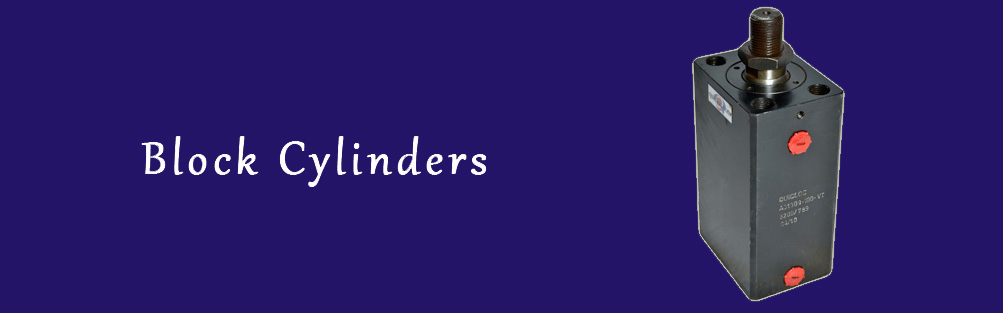

BLOCK CYLINDER :
  1. Versatile, all purpose mounting cylinder.
DESCRIPTION:

Block Cylinders are designed to use for applications like Clamping, Pushing, Lifting, Pulling, Positioning. It can be mounted vertically or horizontally through vertical or horizontal mounting holes. Vertical threaded mounting holes are also available. Each cylinder is available in short or long stroke.

FEATURES:
  • Male / Female threaded piston rod.
  • Min./ Max. Operating Pressure 10/250 bar.
NOTE :
  • Refer general design notes before selection &use.
  • Standard strokes are given. By adding spacers in long stroke cylinders, short strokes can be obtained.
  • Female threaded rod end, Horizontal mounting & Vertical threaded mounting holes are optional.
  • Ordering specification for seal kit. Add prefix "SK" to the model Number.

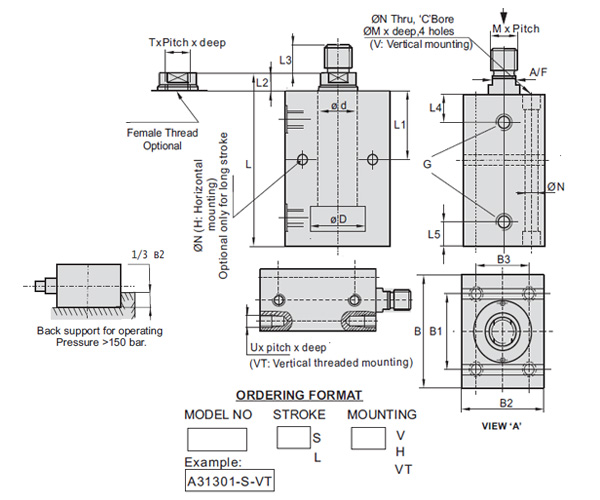

SPECIFICATION CHART
All dimensions in mm.
Model No. : (Male thread) A31301 A31303 A31305 A31307 A31309 A31311 A31313 A31315
(Female thread) A31302 A31304 A31306 A31308 A31310 A31312 A31314 A31316
Force kN @150bar 3 7.2 11.8 18.5 28.8 45.8 73.8 115.5
@ 250 bar 5 12 19.7 30.8 48 76.4 123 192.4
Piston / RodD/d 16 / 12 25 / 16 32 / 20 40 / 25 50 / 32 63/40 80/50 100/56
Stroke ± 0.5 Short (S) 10 10 16 16 20 20 25 25
± 0.5 Long (L)  -  Long stroke 50 mm. Shorter strokes are obtained by adding Spacers.
Oil vol / short stroke cc 2 5 12.8 20 39 62.4 125.5 196.3
M x Pitch M10x1.5 M14x1.5 M16x1.5 M20x1.5 M24x2 M27x3 M30x3.5 M42x3
T x Pitch x deep M6x1x12 M10x1.5x15 M12x1.75x15 M16x2x25 M20x2.5x30 M27x3x40 Mx30x3.5x40 M42x4.5x60
U x pitch x deep (Optional) N.A M12x1.25x15 M12x1.25x15 M12x1.25x15 M16x1.5x20 M20x1.5x22 M24x2x26 M30x2x34
L ± 0.5 : Short 65 70 81 81 96 105 125 130
L ±0.5 : Long 105 110 115 115 126 135 150 155
L1 (Optional) 47 47 43 44 50 56 63 NA
L2 7 8 11 11 11 13 15 15
L3 18 18 22 28 36 40 40 50
L4 27 27 27 27 31 35 35 40
L5 10 11 11 11 12 15 20 20
B 60 65 75 85 100 125 160 170
B1 40 50 55 62 76 95 120 120
B2 35 45 55 63 75 95 120 150
B3 22 30 35 40 45 65 80 110
A/F 10 13 17 22 27 32 37 50
G 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/2" 1/2"
ØN 6.6 9 11 11 14 18 22 26
ØM x deep 11x8* 14.5x10* 17.5x11 17.5x12 20x13 26x18 33x22 39x26
Specifications subject to improvements.
