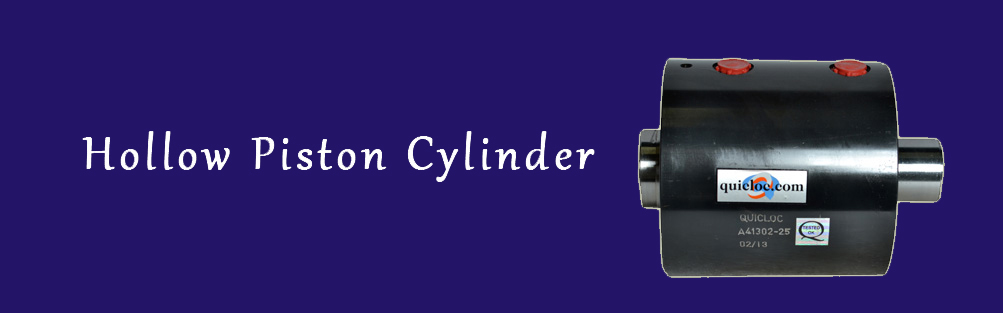

- For High force Push and
Pull applications.
- Better option to replace
Traditional Mechanical
Clamping to Hydraulic
Clamping.
DESCRIPTION:

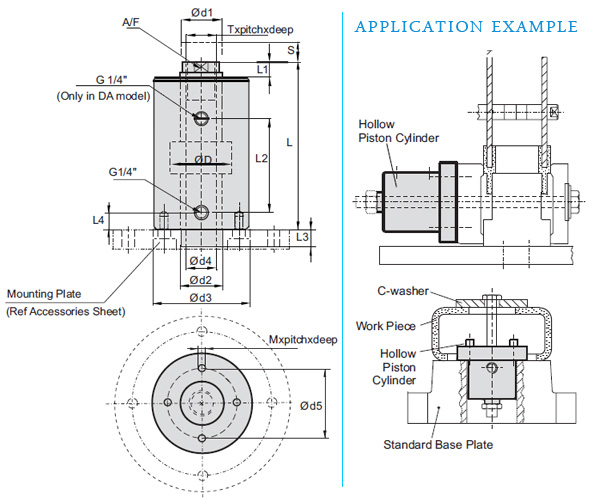

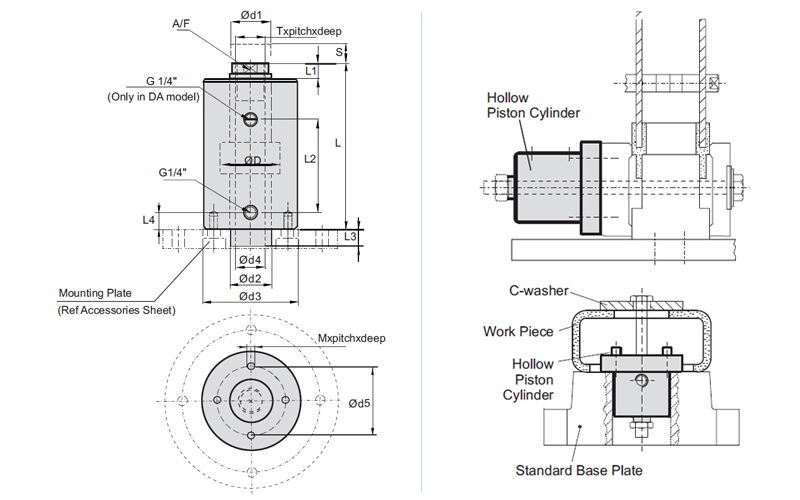

Hollow Piston Cylinders are provided with a through hole and internal
threading in connection with a standard push-pull bolt and mounting plate
combination for a variety of clamping applications. These are also
suitable for retrofitting manual fixtures into hydraulic fixtures.
FEATURES:
- Min./ Max. Operating Pressure 10/250 bar.
- By using mounting plate, these cylinders can be used for flange
mounting.
- Cylinders are available in both single (SA) & double acting (DA) range.
NOTE :
- Order mounting plate separately. For details refer accessories
sheet Page No. XI.
- Refer general design notes before selection & use.
- Ordering specification for seal kit. Add prefix "SK" to the model Number.
|
|
SPECIFICATION CHART
All dimensions in mm. |
| Model No. SA |
A41201 |
A41202 |
| DA |
A41301 |
A41302 |
| Force kN @ 150 bar |
21.7 |
34.0 |
| @ 250 bar |
36.1 |
56.7 |
| Piston Ø D |
50 |
63 |
| Oil Volume cc |
17.6 |
46.2 |
| Eff Area Sq. cm |
14.7 |
23.1 |
| Stroke S + 0.5 |
12 |
20 |
| M x pitch x deep |
M8x1.25x12 |
M12x1.75x15 |
| T x pitch x deep |
M16x2x20 |
M20x2.5x25 |
| Ø d1 |
32 |
40 |
| Ø d2 |
25 |
32 |
| Ø d3 |
90 |
105 |
| Ø d4 |
18 |
24 |
| Ø d5 |
70 |
85 |
| L + 0.5 |
96 |
113 |
| L1 |
10 |
12 |
| L2 |
40 |
50 |
| L3 |
14 |
22 |
| L4 |
15 |
19 |
| A/F |
24 |
36 |
| Mounting Plate |
XA5003 |
XA6303 |
|
Specifications subject to improvements.
Click here to download a pdf:
A41201 | A41202
- Compact in Design.
- Ideal for converting
Mechanical fixture to
Hydraulic.
DESCRIPTION:

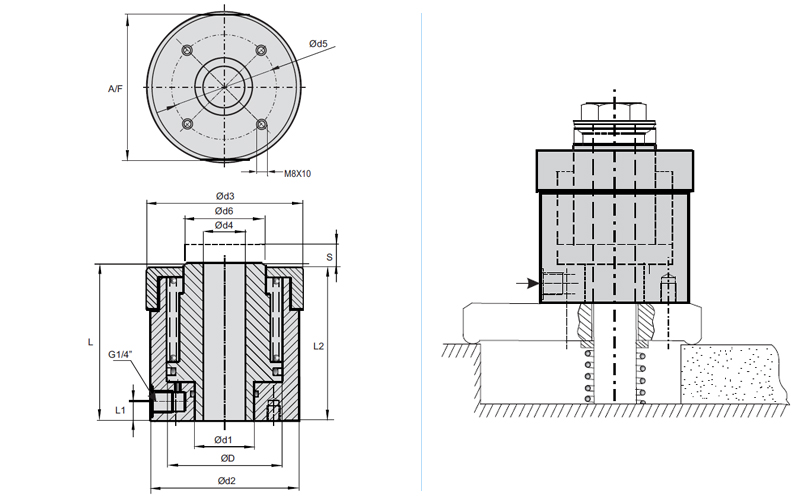

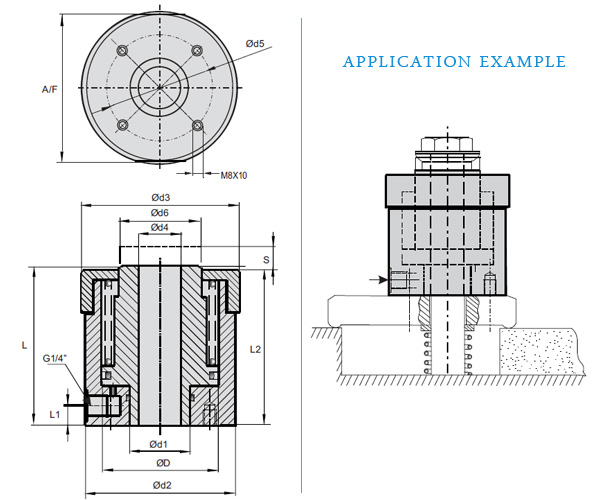

This compact Hollow piston cylinder has a through hole in
the body. The piston loads the clamp when pressurized.
These are specially used for conversion of manual fixtures
into Hydraulic fixtures. These cylinders can be used as
both push and pull units. The diameters of their piston
bores are fit to take up clamping screws with metric
threads. Such cylinder will be universal in service and
suitable in particular for later installation into manual
clamping fixtures.
FEATURES:
- Min./ Max. Operating Pressure 10/250 bar.
- Due to its compact dimensions, it can fit in intricate
places.
NOTE :
- Refer general design notes before selection & use.
- Spring designed for Piston withdrawl only. Do not overload
in withdrawn condition.
- Ordering specification for seal kit. Add prefix "SK" to the model
Number.
|
| Keep back pressure in the
system and in the line to
minimum for smooth working
of cylinder. All dimensions in mm. |
SPECIFICATION CHART
| Model No. |
A42201 |
A42202 |
A42203 |
| Force kN @150bar |
26.5 |
31.6 |
41.6 |
| @ 250 bar |
44 |
52.8 |
69.3 |
| Piston / Ø D |
55 |
63 |
70 |
| Eff Area Sq. cm |
18 |
21.5 |
28.3 |
| Oil Volume cc |
14.4 |
21.5 |
42.5 |
| Stroke S ± 0.5 |
8 |
10 |
15 |
| Ø d1 |
27 |
35 |
35 |
| Ø d2 |
72 |
80 |
90 |
| Ø d3 |
72 |
85 |
95 |
| Ø d4 |
17.5 |
26 |
26 |
| d5 ± 0.2 |
55 |
65 |
70 |
| d6 |
38 |
48 |
50 |
| L ± 0.5 |
64 |
87 |
100 |
| L1 |
10 |
11 |
12 |
| L2 |
63 |
85 |
98 |
| A/F |
70 |
80 |
90 |
|
Specifications subject to improvements.
Click here to download a pdf:
A42201 | A42202 | A42203

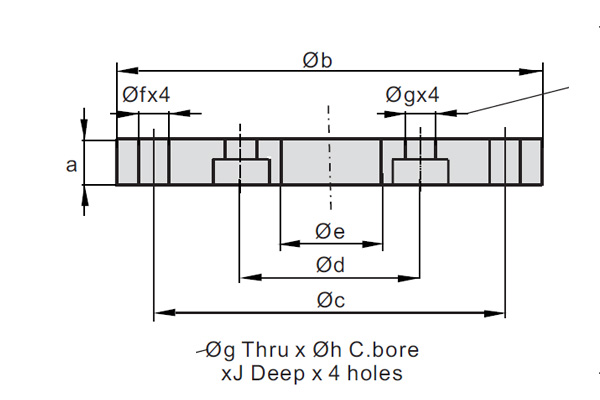

MOUNTING PLATE FOR HOLLOW PISTON CYLINDER :
|
|
|
| Model No. SA |
XA5003 |
XA6303 |
| Øa |
20 |
25 |
| Øb |
125 |
160 |
| Øc |
108 |
136 |
| Ød |
70 |
85 |
| Øe |
28 |
33 |
| Øe |
11 |
14 |
| ØgxØhxØj |
9x14.5x9 |
14x20x14 |
|

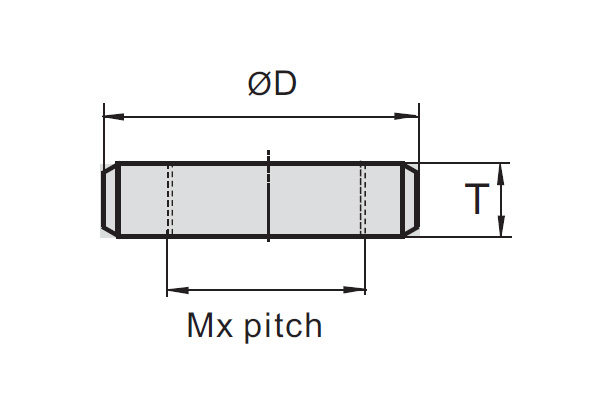

RING NUTS :
|
|
|
| Model No. |
Mxpitch |
T |
ØD |
| XN20 |
M20x1.5 |
6 |
32 |
| XN24 |
M24x1.5 |
7 |
38 |
| XN36 |
M36x1.5 |
8 |
52 |
| XN39 |
M39x1.5 |
9 |
58 |
| XN48 |
M48x1.5 |
11 |
70 |
| XN52 |
M52x1.5 |
11 |
75 |
| XN60 |
M60x1.5 |
11 |
80 |
| XN65 |
M65x1.5 |
12 |
85 |
| XN90 |
M90x2 |
16 |
120 |
| XN95 |
M95x2 |
17 |
125 |
|
|
|
