- Extremely compact for
positioning and
fixturing.
- Fine positioning and
convenient installation.
DESCRIPTION:
These cylinders can be threaded directly into manifold/
fixture body. Suitable for positioning, clamping or ejecting
the work piece. These cylinders can be used in fixtures
where space is a constraint. Special aluminium washer
provides self sealing. Aluminium washer is included in the
delivery.
FEATURES:
- Threaded cylinder with internal threaded piston rod.
- Can be lined up to very close dimensions, as close as
hexagonal nut (min 35 mm).
- Min./ Max. Operating Pressure 5 / 250 bar.
NOTE :
- Do not load in retracted condition.
- Refer general design notes before selection & use.
- Ordering specification for seal kit. Add prefix "SK" to
the model Number.
- Keep back pressure to minimum for
smooth working of cylinder. (Refer
General Recommendations sheet
Page No. R1).

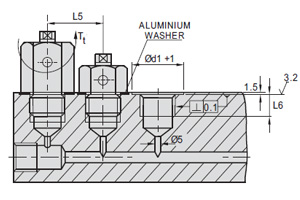

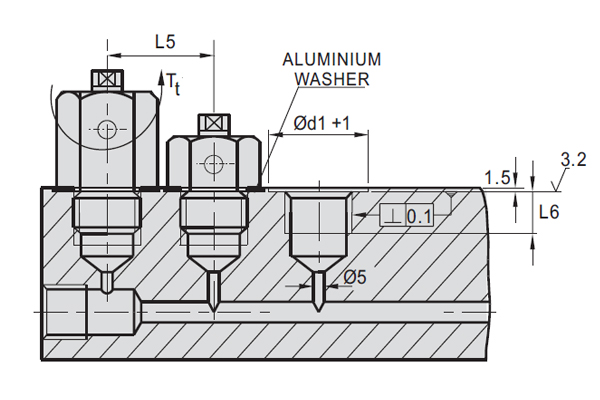

- Tighten manifold cylinder to
specified tightening torque Tt
mentioned in the specification chart.

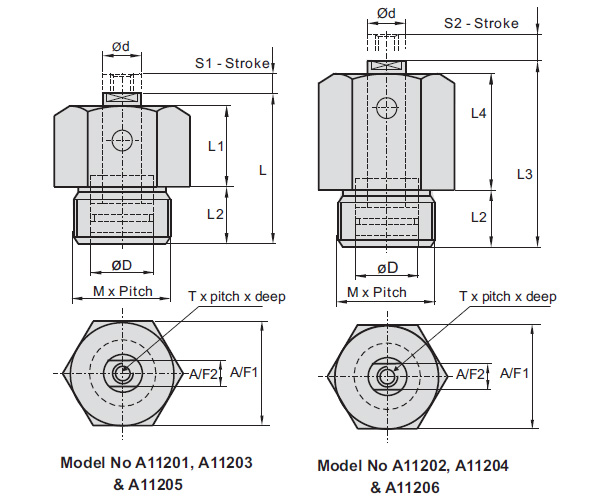

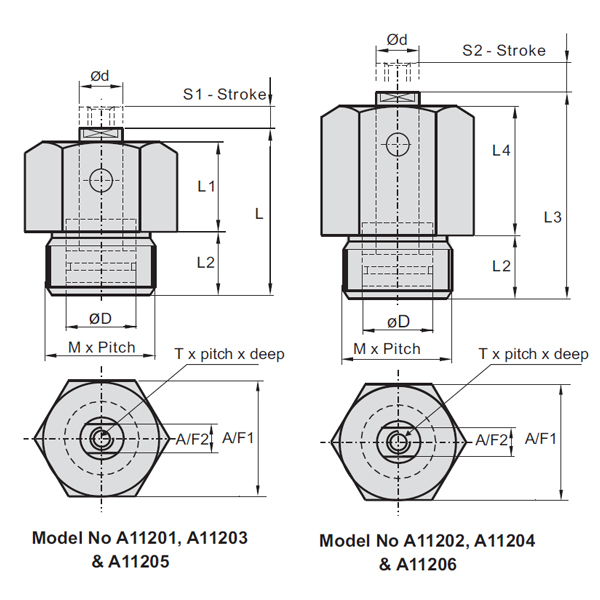

SPECIFICATION CHART
All dimensions in mm.
| Model No. |
A11201
A11202 |
A11203
A11204 |
A11205
A11206 |
| Force kN @150bar |
2.9 |
4.6 |
7.2 |
| @ 250 bar |
4.9 |
7.6 |
12 |
| Piston / Ø Rod D/d |
16 / 10 |
20/12 |
25/16 |
| Piston area sq. cm |
2 |
3.1 |
4.9 |
| Stroke S1 ± 0.5 |
5 |
8 |
12 |
| Stroke S2 ± 0.5 |
8 |
10 |
16 |
| Oil volume @ S1 cc |
1.0 |
2.5 |
5.9 |
| Oil volume @ S2 cc |
1.6 |
3.1 |
7.8 |
| M x Pitch |
M24x1.5 |
M30x1.5 |
M36x1.5 |
| T x pitch x deep |
M5x0.8x12 |
M6x1x14 |
M8x1.25X17 |
| L ± 0.5 |
47 |
55 |
63 |
| L1 |
24 |
28 |
33 |
| L2 |
15 |
18 |
20 |
| L3 ± 0.5 |
59 |
61 |
70 |
| L4 |
36 |
35 |
40 |
| L5 |
35 |
45 |
50 |
| L6 |
17 |
21 |
23 |
| Ød1 |
29 |
36 |
42 |
| A/F1 |
27 |
36 |
41 |
| A/F2 |
7 |
8 |
13 |
| Torque Tt Nm |
110 |
120 |
130 |
Specifications subject to improvements.
Click here to download a pdf:
A11201 | A11202 | A11203 | A11204 | A11205 | A11206
- Tighten manifold cylinder to
specified tightening torque
Tt mentioned in the
specification chart.
- Keep back pressure to
minimum for smooth
working of cylinder (Refer
General Recommendations
Sheet Page No. R1).
DESCRIPTION:
These compact cylinders can be used in various
applications. Ideal for use in fixture positioning, clamping
and ejecting the workpiece. Special gasket provides self
sealing. Gasket is included in delivery.
FEATURES:
- Threaded cylinder with internal threaded piston rod or
spherical piston rod end.
- Can be lined up to close dimensions.
- Min./ Max. Operating Pressure 5 / 250 bar.
NOTE :
- Refer general design notes before selection & use.
- Do not load in retracted Condition.
- Ordering specification for seal kit. Add prefix "SK" to the
model Number.
|

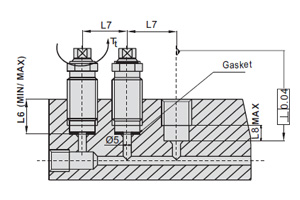

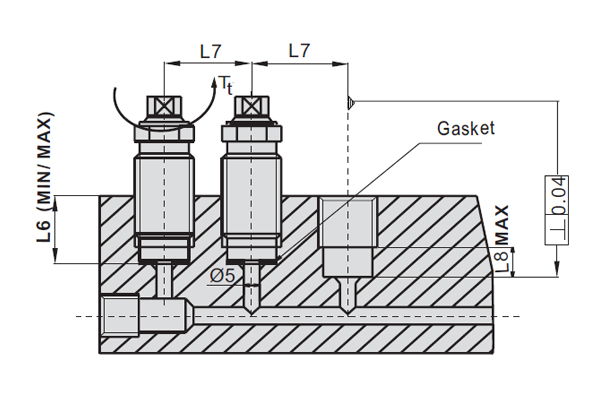

| PORTING DETAILS |

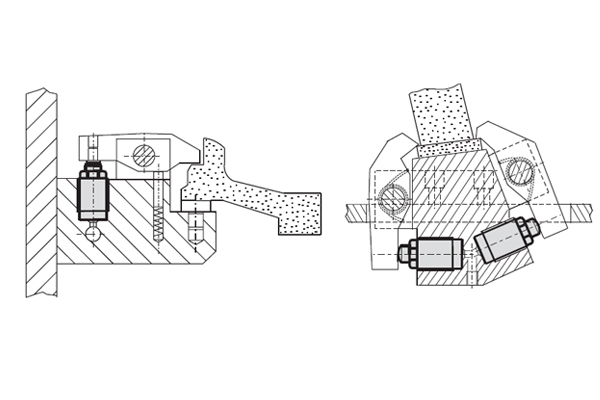

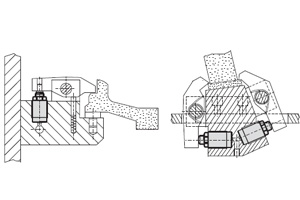

APPLICATION EXAMPLE |
|
|

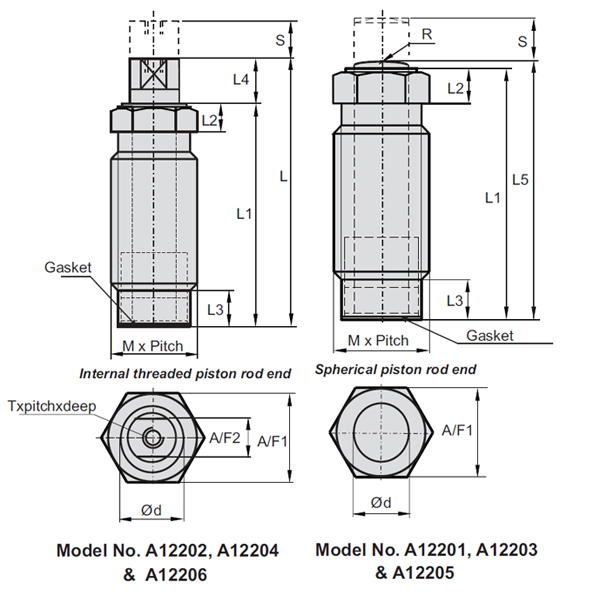

SPECIFICATION CHART
All dimensions in mm.
| Model No. |
A12201
A12202 |
A12203
A12204 |
A12205
A12206 |
| Force kN @150bar |
2.9 |
7.2 |
11.8 |
| @ 250 bar |
4.9 |
12 |
9.6 |
| Ram Ø d |
16 |
25 |
32 |
| Ram area Sq.cm |
2.0 |
4.9 |
8.0 |
| Stroke S ± 0.5 |
12 |
16 |
20 |
| M X Pitch |
M26x1.5 |
M38x1.5 |
M48x1.5 |
| T x pitch x deep |
M6x1x6 |
M8x1.25x8 |
M12x1.75x12 |
| L + 0.5 |
59 |
69 |
98 |
| L1 |
48 |
55 |
82 |
| L2 |
10 |
12 |
15 |
| L3 |
8 |
11 |
12 |
| L4 |
10 |
14 |
16 |
| L5 ± 0.5 |
50 |
57 |
84 |
| L6 min/max |
20/30 |
28/35 |
42/58 |
| L7 min |
34 |
52 |
62 |
| L8 max |
6 |
9 |
10 |
| R |
35 |
70 |
100 |
| A/F1 |
27 |
41 |
50 |
| A/F2 |
13 |
19 |
24 |
| Torque Tt Nm |
2.9 |
7.2 |
11.8 |
Specifications subject to improvements.
