VERTICAL SWING CLAMP :


Quicloc designs and manufactures high quality vertical swing clamps for sale in India. These clamps or actuators are useful for application where there is need for high clamping forces and hence are used in heavy duty machining fixtures. Some of the selection factors for the vertical swing clamps are:

  1. Best selection for heavy clamping force.
  2. Compact in design.
  3. Ensures easy component loading and unloading.
  4. 4.Appropriate for top clamping.
  5. Do not exceed maximum allowable inlet pressure.
DESCRIPTION:

Vertical Swing clamps gives high clamping forces and are used in heavy duty machining fixtures.

FEATURES:
  • Compact design with higher clamping force.
  • Ideally suited where horizontal swing is not allowed.
  • Min./Max. Operating Pressure - 25/150 bar.
  • Cylinders are available with manifold mounting as optional.
NOTE :
  • Refer general design notes before selection & use.
  • Refer Accessories sheet Page No. X1 for clamping lever details.
  • Ordering specification for seal kit. Add prefix "SK" to the model Number.

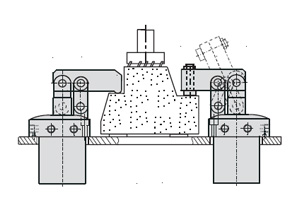

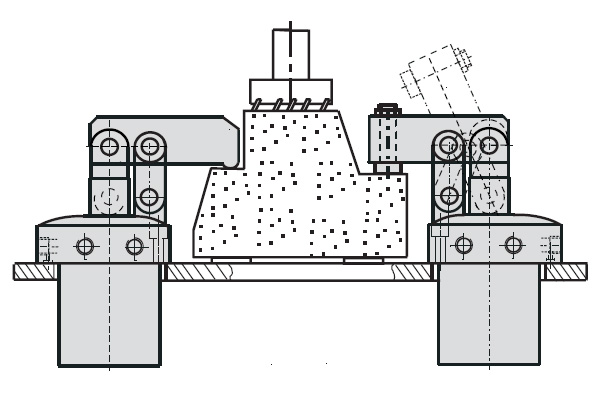

APPLICATION EXAMPLE:

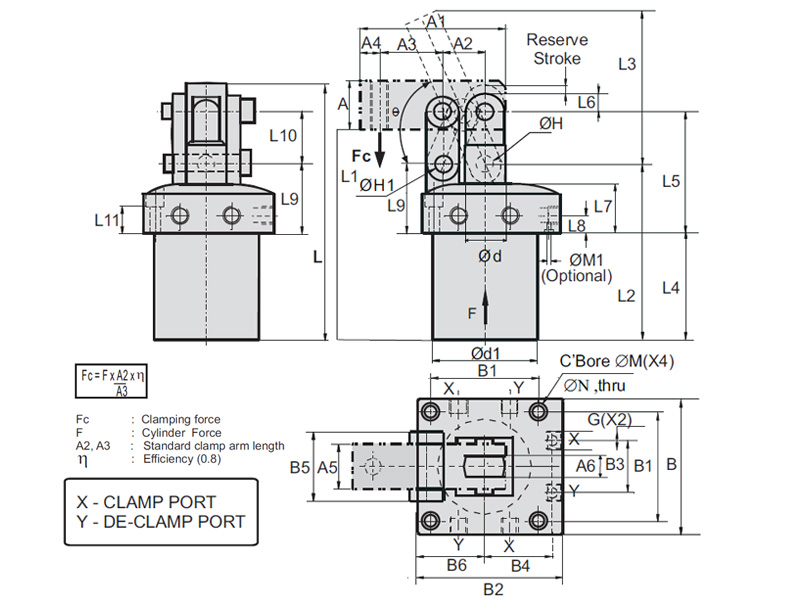

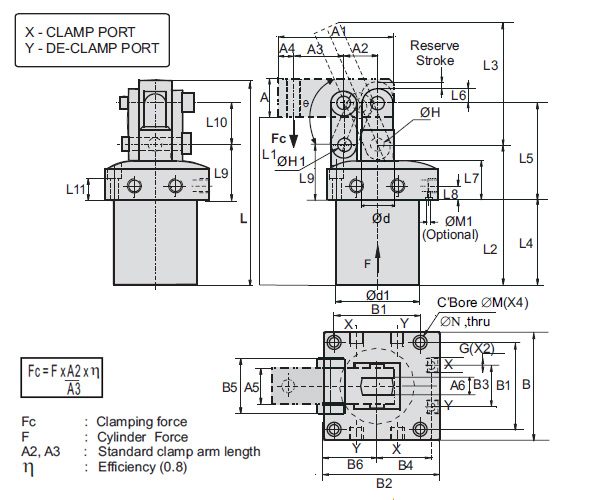

All dimensions in mm.
  Model No. : S31301 S31302 S31303 S31304 S31305 S31306
  Force Fc kN @ 150 bar 4.9 8.3 11.9 18.3 33.1 56.4
  Piston / RodØD/d 25/16 32/20 40/25 50/30 63/35 80/45
  Stroke+0.5 20 25 33 42 52 65
  Reserve Stroke 2 2 3 3 3 3
  Oil Volume cc 9.5 20 41.5 82.5 162 326.5
  Ød1 48 55 65 80 95 115
  L + 0.5 119 146 173 209 247 310
  L1 96 120 141 169 199 252
  L2 84 103 118 140 163 207
  L3 65 67.5 84 104.5 128 153.5
  L4 47 60 72 85 102 130
  L5±0.1 57 68 79 97 113 142
  L6 9 9 12 13 16 20
  L7 26 28 30 35 36 48
  L8 10 12 12 14 14 19
  L9 37 43 48 57 63 80
  L10 20 30 37 47 58 74
  L11 17 11 14 15 16 16
  B 60 70 82 92 112 134
  B1 45 55 63 70 85 100
  B2 70 75 86 100 121 152
  B3 22 30 30 35 42 48
  B4 32.5 33.5 38.5 47 57 66
  B5s 26 34 40 48 58 74
  B6 30 35 41 46 56 67
  G 1/8" 1/8" 1/4" 1/4" 3/8" 3/8"
  ØH 8 8 10 12 6 20
  ØH1 8 10 12 15 20 25
  ØM 9.5 11 14.5 17.5 20 26
  ØN(x4) 5.5 6.6 9 11 14 18
  ØM1(Max) 3 4 4 4 7 7
  0 ~ 63 66 68 75 70 69
  Std. Clamp Arm XV2501 XV3201 XV4001 XV5001 XV6301 XV8001
Specifications subject to improvements.

Click here to download a pdf:

Manifold -   S31301 |  S31302 | S31303 |  S31304 | S31305 |  S31306

Port -   S31301 | S31302 |  S31303 |  S31304 | S31305 |  S31306

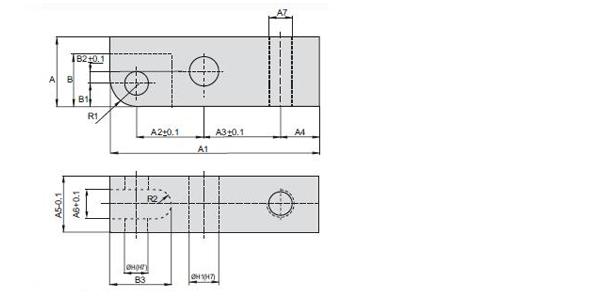

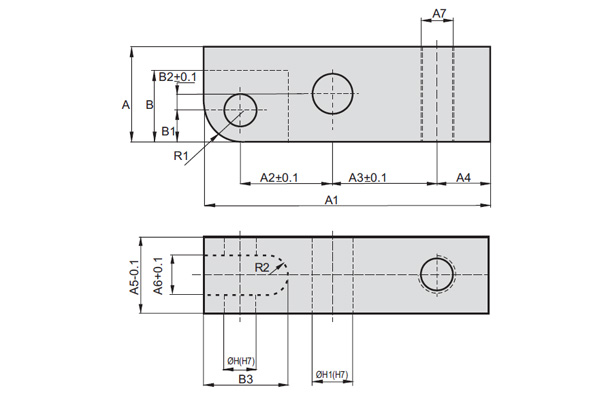

CLAMP ARM FOR VERTICAL SWING CLAMP :



Model No. : XV2501 XV3201 XV4001 XV5001 XV6301 XV8001
A 23 26 32 40 48 58
A1 62 75 95 115 142 173
A2+0.1 20 24 30 35 46 58
A3+0.1 24 28 38 45 52 62
A4 10 13 14 21 26 30
A5-0.1 16 22 26 32 38 46
A6+0.1 8 10 12 16 20 24
A7 M8 M8 M10 M12 M16 M20
B 19 19 24 32 36 46
B1 8 8 10 13 16 20
B2+0.1 NA 5 6 7 8 12
B3 18 24 30 33 42 58
H(H7) 8 8 10 12 16 20
H1(H7) 8 10 12 15 20 25
R1 8 8 14 16 16 30
R2 4 5 6 8 10 12
